Double Shaft Shredder
LYDS series double shaft shredder can meet the waste recycling requirements of various industries, including automobile tires, wood, wire, plastic, metal and domestic garbage etc. The shredded material can be directly recycled or further crushed according to demand.It adopts the principle of two shaft shearing, and realizes the fine decomposition of materials through the shearing, tearing and squeezing actions of the blades.

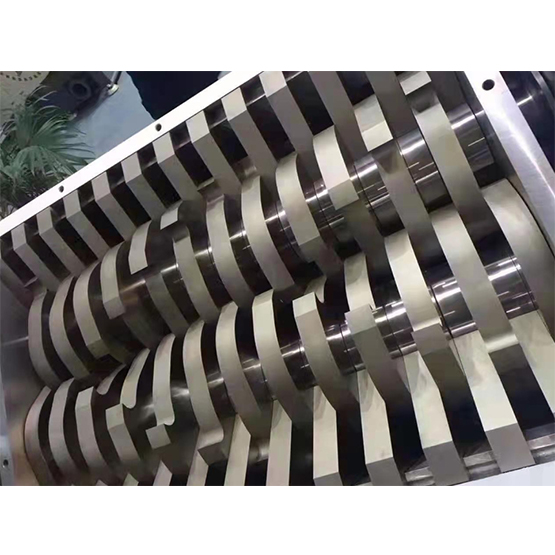

The shredder blades can be customized depending on the material need to be processed. Two counter rotating shafts with special design blades and spacer combs placed between blades and attached to shredding chamber walls cut material into pieces with great force.
SUITABLE RAW MATERIALS
1.All kinds of hollow containers: plastic beverage cans, plastic buckets, iron drums, packingboxes, packing drums.
2.Used household appliances: TV, washing machine, refrigerator shell.
3.Pipe material: large pipe, pipe fitting and PE pipe.
4. Used templates: wooden pallets, plastic pallets and forklifts.
5.Used tires: car tires, truck tires.
6.Scrap metal: automobile housing, aluminum alloy, scrap cast aluminum parts, enginehousing, lead and steel plates with thickness below 5mm.
7.Cooking garbage, living garbage,RDF derivative, medical waste, biological orange pole,garden garbage.
8.Glue head material, paper mill rope.
Main technical parameters of Double Shaft Shredder :
Mini Double Shaft Shredder:
| Model | Motor Power | Capacity | Blade material |
| LYDS-200 | 1.5KW | 30-50kg/h | SKD-11 or DC53 |
| LYDS-300 | 3KW | 50-100kg/h | SKD-11 or DC53 |
| LYDS-400 | 5.5KW | 100-200kg/h | SKD-11 or DC53 |
| LYDS-500 | 7.5KW | 200-300kg/h | SKD-11 or DC53 |
| LYDS-600 | 7.5KW+7.5KW | 300-400kg/h | SKD-11 or DC53 |
Heavy Duty Double Shaft Shredder:
| Model | Motor power | Capacity | Blade material |
| LYDS-800 | 15KW+15KW | 500-800kg/h | SKD-11 or DC53 |
| LYDS-1000 | 18.5KW+18.5KW | 800-1000kg/h | SKD-11 or DC53 |
| LYDS-1200 | 30KW+30KW | 1000-1500kg/h | SKD-11 or DC53 |
| LYDS-1600 | 45KW+45KW | 1500-2500kg/h | SKD-11 or DC53 |
| LYDS-1800 | 55KW+55KW | 2000-3000kg/h | SKD-11 or DC53 |
| LYDS-H1600 | 75KW+75KW | 3000-4000kg/h | SKD-11 or DC53 |
| LYDS-H1800 | 90KW+90KW | 4000-5000kg/h | SKD-11 or DC53 |
