Plastic Mixer Paddle Blade For High Speed Mixer Machine

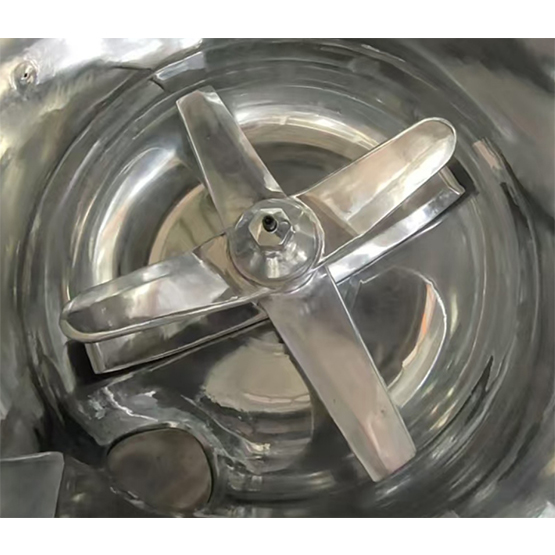

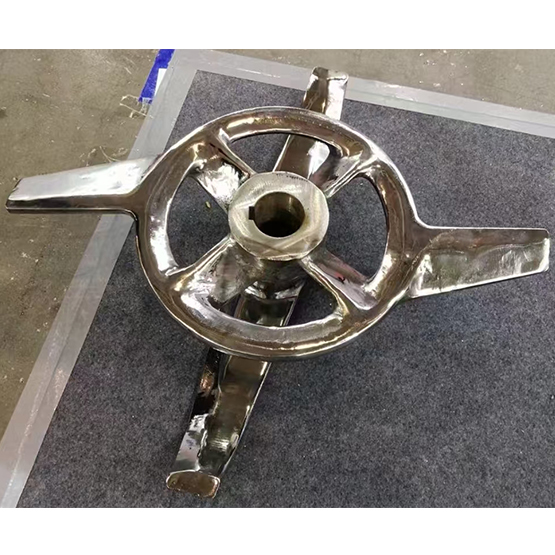

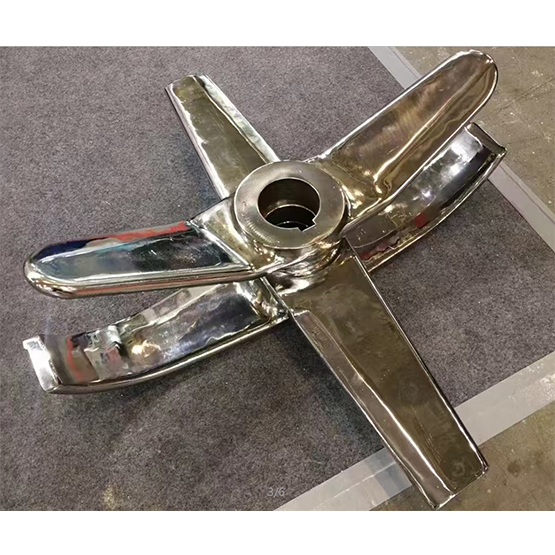

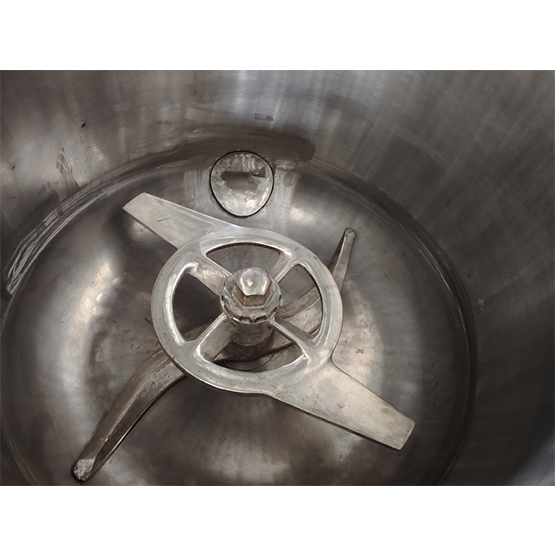

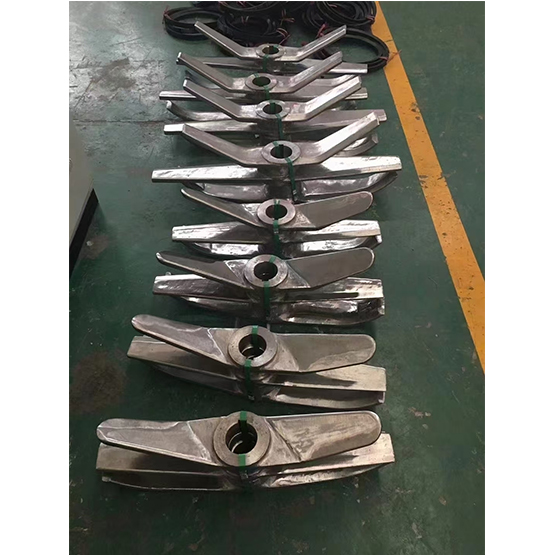

Our Stainless Steel Plastic Mixer Paddle Blade can be used for plastic powder and plastic granules according to different design types, which are suitable for hot and cooling mixer. According to the characteristics of materials, there are two kinds of high speed mixer blades. They are disc blades and three blades, just like the pictures.

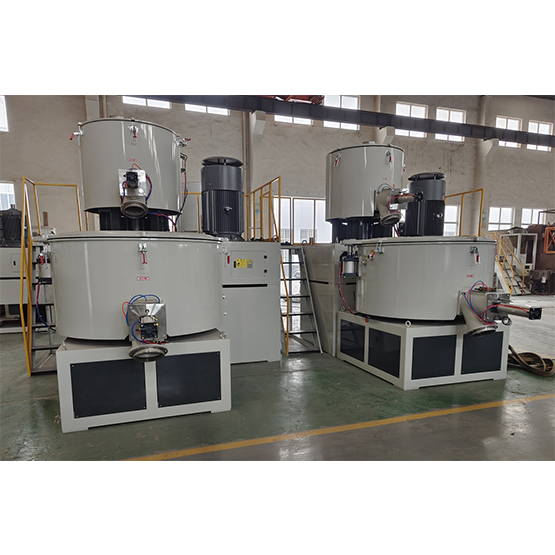

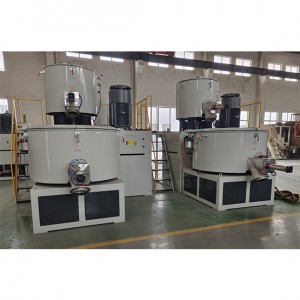

The sizes of Plastic Mixer Paddle Blade are designed according to the model of mixer units. We will provide blades accordingly or custom production, please see the following specifications of our mixer units for your reference:
Main technical parameters of Plastic Mixer Paddle Blade For High Speed Mixer Machine :
| Model/specs | SRL-Z100/200 Hot mixing/cold mixing | SRL-Z200/500 Hot mixing/cold mixing | SRL-Z300/600 Hot mixing/cold mixing | SRL-Z500/1000 Hot mixing/cold mixing | SRL-Z800/1600 Hot mixing/cold mixing |
| Total cubage(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective cubbage(L) | 65/130 | 150/320 | 225/380 | 375/650 | 600/1050 |
| Mixed speed(r/min) | 650/1300/80 | 475/950/80 | 475/950/80 | 430/860/60 | 370/740/50 |
| Mixed time | 8-12min | 8-12min | 8-12min | 8-12min | 8-12min |
| Motor Power | 14/22/7.5 | 30/42/11 | 40/55/11 | 47/67/15 | 60/90/22 |
| Dimension(L×W×H)(mm) | 1950×1600×1800 | 4580×2240×2470 | 4800×2640×2480 | 4600×3000×4050 | 5170×3200×4480 |
| Weight(kg) | 2200 | 3400 | 3600 | 4800 | 6200 |
