pulverizer miller
Application of PVC PP PE pulverizer mill machinery:
Adopted material is HDPE LDPE LLDPE PVC PE PET pellet or flakes that the size is not surpass the 12mm ,soft PVC ,HARD pvc and so on.
Final powder mesh size in genneral is between 20~80 mesh.
The powder mesh size is adjustbale.
Features of PVC PP PE pulverizer mill machinery:
1. Compare with same type pulverizer, the capacity of this mode is more higher
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker
4. the cover of main machine can be opened for maintain
5.the cooling of machine have wind cooling and water cooling, it can cool the machine body very good.

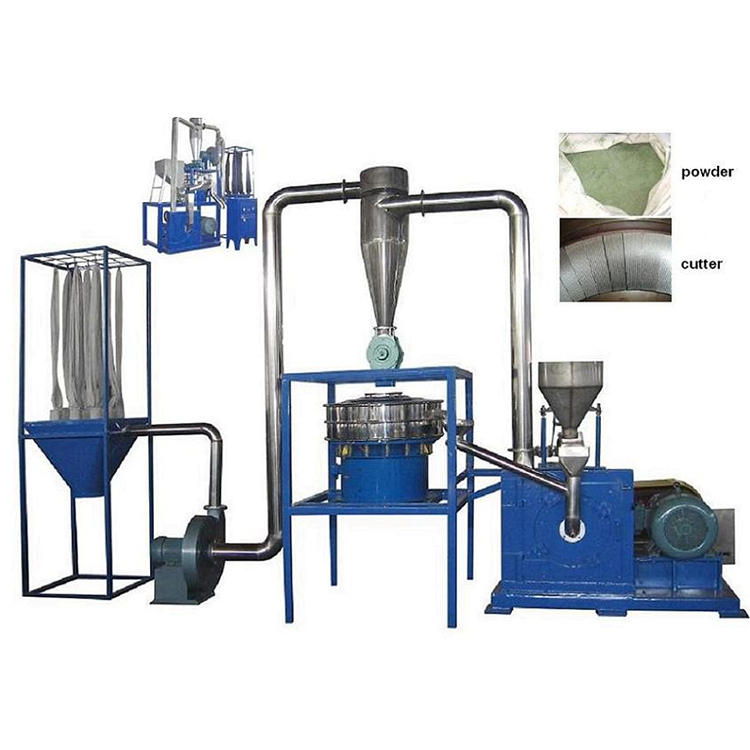

Components of PVC PP PE pulverizer mill machinery:
1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shanking feeder
6. Rotundity vibrating sieve
7. Cyclone windbutterfly valve
8. Cyclone seperator
9. Blower
10. Electrical control cabinet
11. Dust catcher.
| Model | MF400 | MF500 | MF600 | MF800 |
| Diameter of milling blade | 400MM | 500MM | 600MM | 800MM |
| Power | 30KW | 45KW | 55KW | 75KW |
| Blade material | SKD-11 OR D53 | SKD-11 OR D53 | SKD-11 OR D53 | SKD-11 OR D53 |
| Capacity | 150KG/H | 250KG/H | 350KG/H | 450KG/H |
