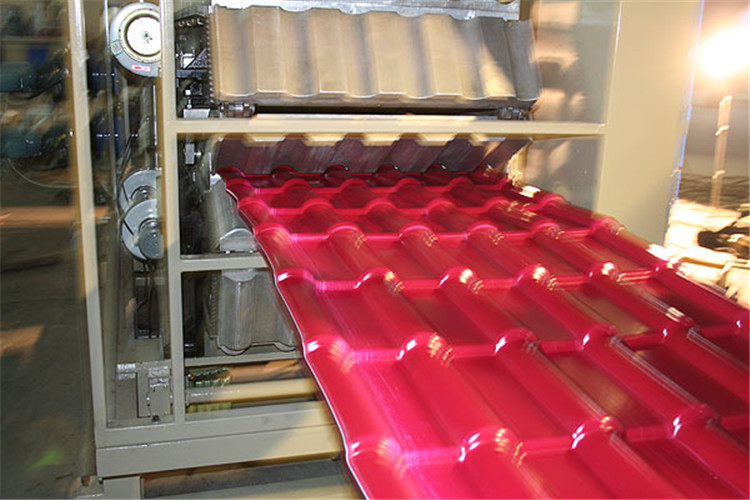

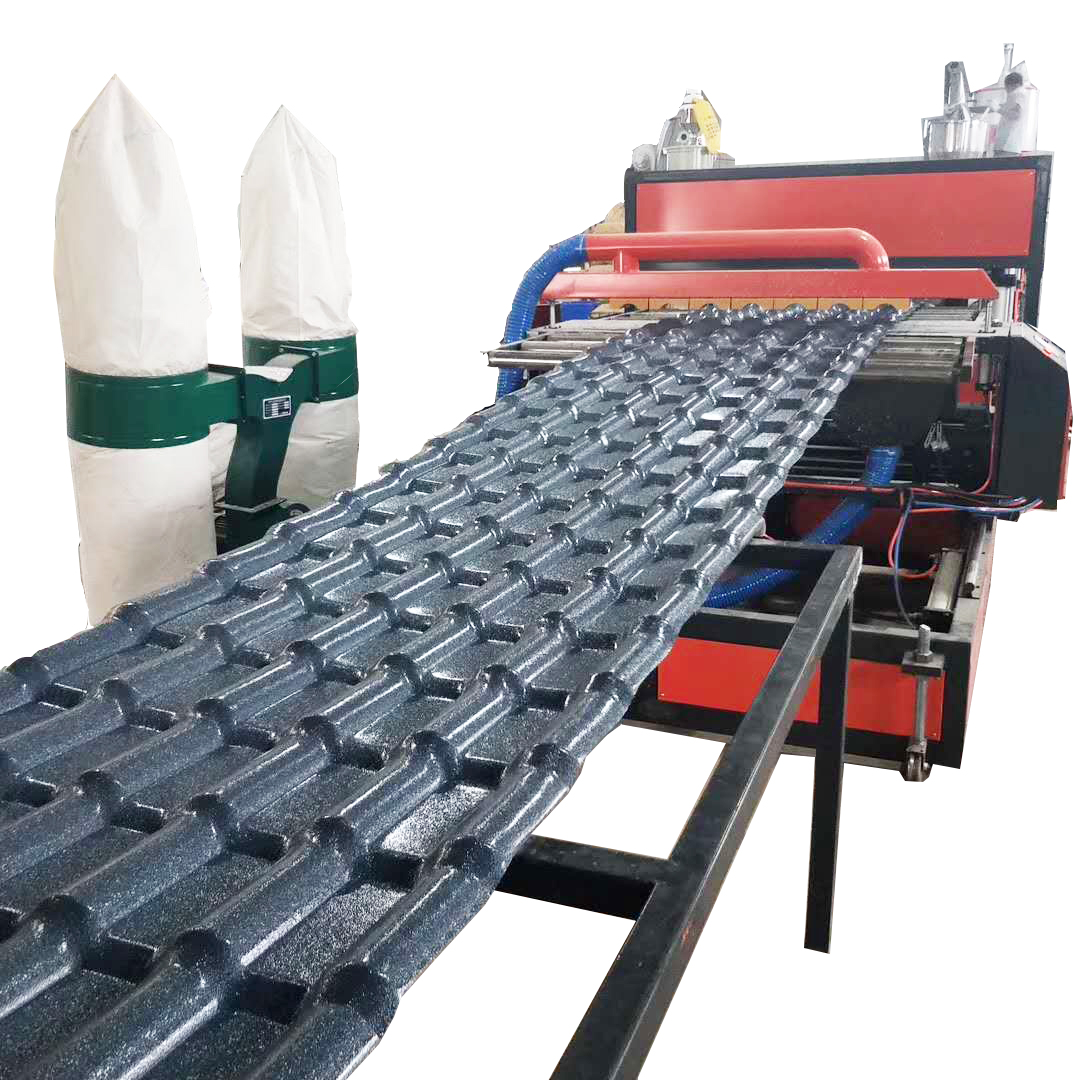

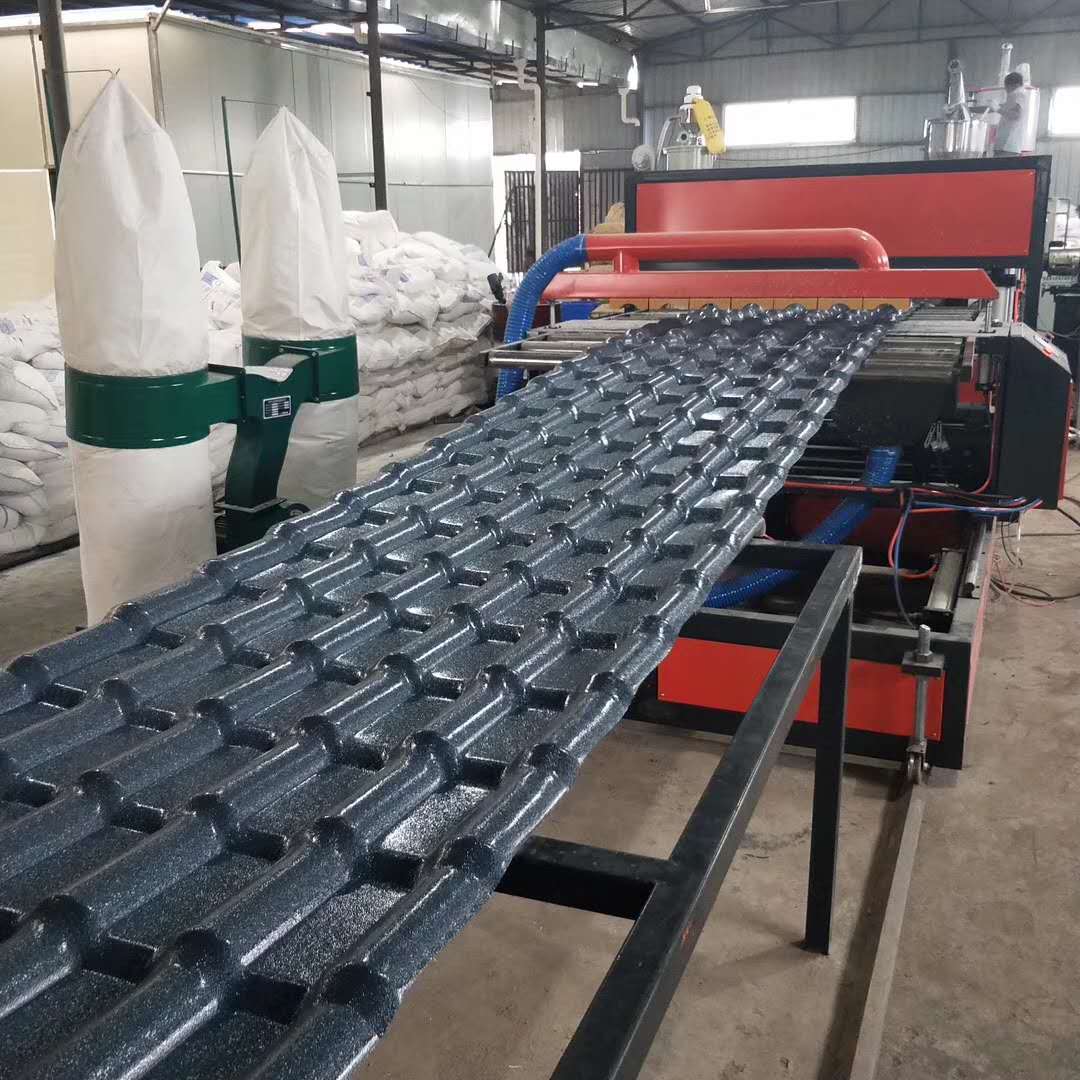

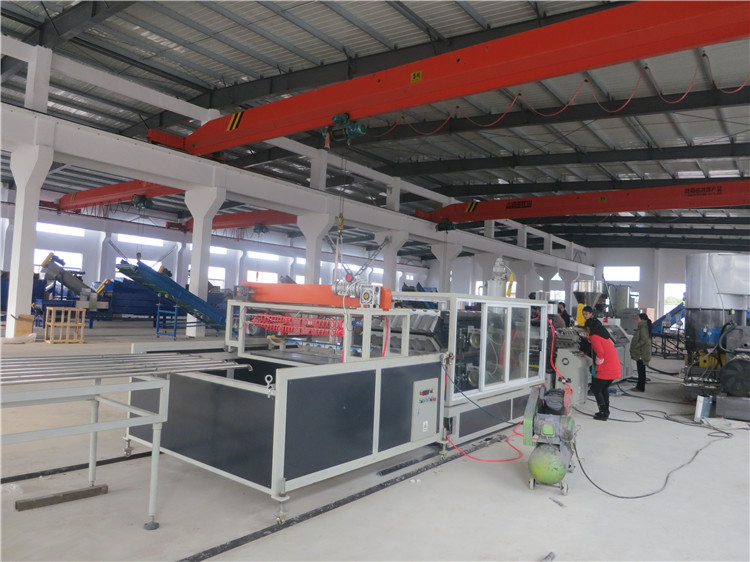

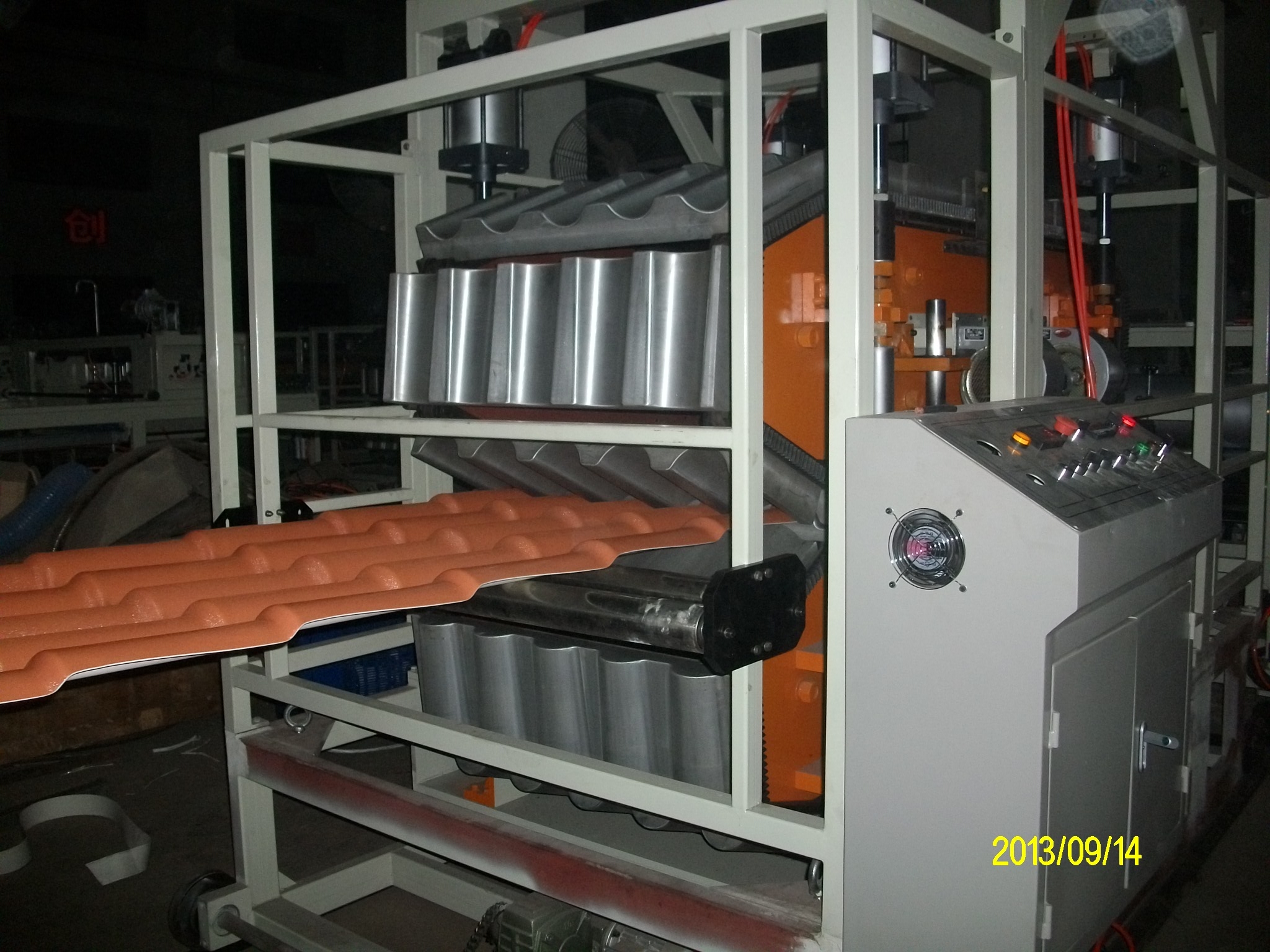

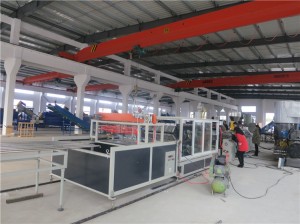

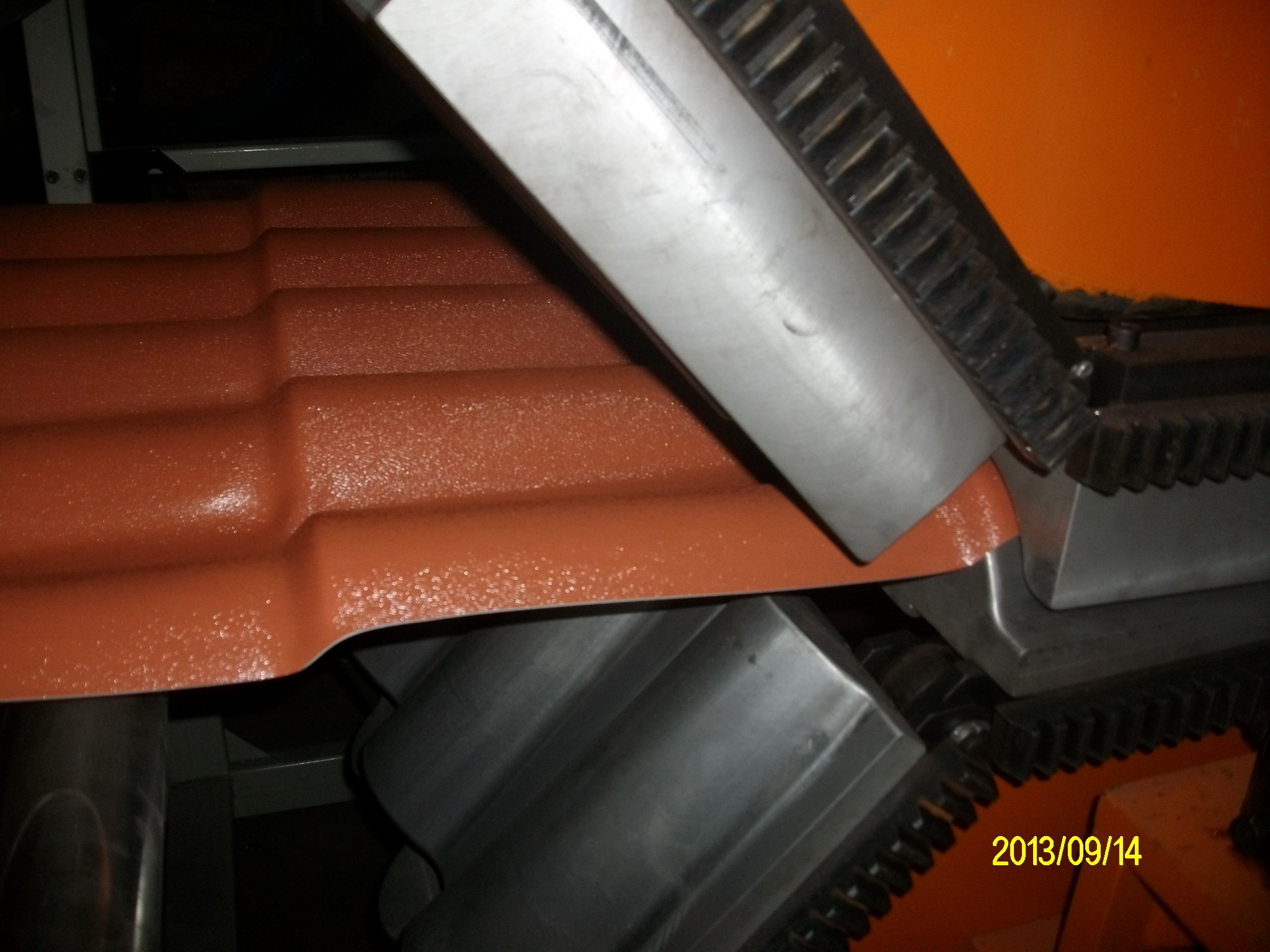

PVC Glazed Tile Production machine

Short Description:

We are a professional manufacturer for the PVC ASA corrugated Glazed Tile extruder machines in China, with more than 20 years experience.


Product Detail

Product Tags

We are a professional manufacturer for the PVC ASA corrugated Glazed Tile extruder machines in China, with more than 20 years experience.

Features of PVC ASA corrugated Glazed Tile extruder machines:

1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.

2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.

3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.

4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.

5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.

6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.

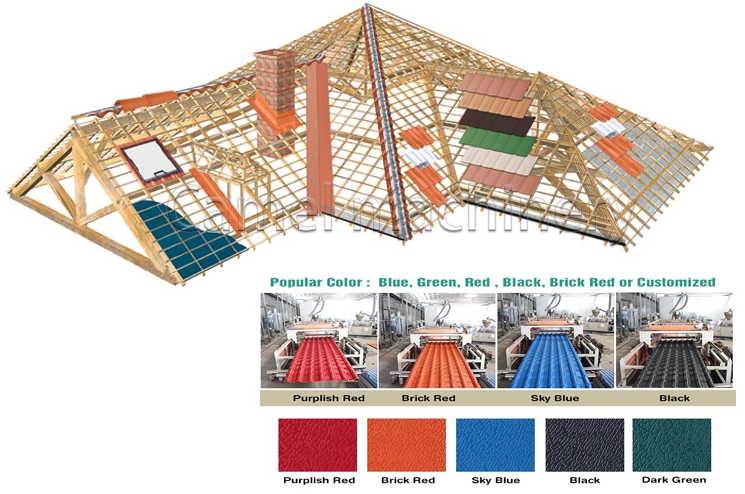

Advantages of PVC ASA corrugated Glazed Tile:

l Excellent thermal insulation;

l Fireproofing and fire-resisting;

l Corrosion resistance;

l Strong weatherability;

l Long service life;

l Good daylighting;

l Low noise;

l Environment-friendly;

l Good-looking;

l Easy construction;

l Higher price-performance ratio;

Structure Single layer Double layers Three layers
Suitable material PVC ASA/PMMA+PVC PVC+PVC foam +PVC
Product width 720-1130mm 720-1130mm 720-1130mm
Product thickness 0.8-3.0mm 2.5-3.0mm 2.5-3.0mm
Extruder model SJZ80/156 SJ50/30+ SJZ80/156 SJ50/105+ SJZ65/132+SJZ51/105
Designed capacity 300kg/h 350-400kg/h 350-400kg/h
